Sludge Dewatering Belt
Sludge Dewatering Belt
Sludge dewatering belt, as its name implies, is designed for solid/liquid separation, especially sludge
dehydration in sewage treatment industry. Made of high quality polyester, our range of belt is heat-set
atexacting temperature and tensioned to achieve much better operational stability. It is suitable for press
belt filter and various vacuum belt filters.
Environmental protection - Our range of quality Sludge Dewatering Belt is regarded as one of the best choices
for waste water treatment and sewage disposal. Excellent water & air permeability allows for repaid dehydration
yet enable the belt to prevent filtered sludge to pass through.
Materials: Polyester fiber.
Uses and Features:
This product is specially designed for wastewater treatment plants as sludge dewatering mesh belt. It enjoys the
features of air and water permeation, while not allowing the sludge. Due to its unique structure, the sludge will get
easily off the belt after filtration. Easy cleaning and long service life.
Technical Parameter:
|
Model |
Wire diameter |
Density |
Air permeability |
Net weight |
Strength |
Used in |
||
|
mm |
Root/10cm |
m3/m2h |
g/m2 |
kg/cm |
||||
|
Warp |
Weft |
Warp |
Weft |
|
|
|
||
|
14803 |
0.7 |
0.8 |
142 |
47-60 |
3900- |
1400 |
240 |
Sludge, |
|
8500 |
Squeeze juice |
|||||||
|
16803 |
0.7 |
0.8 |
156 |
46-50 |
6000 |
1400 |
265 |
Sludge, |
|
Squeeze juice |
||||||||
|
16904 |
0.75 |
0.9 |
156 |
47 |
8000 |
1800 |
280 |
Iron and steel industry sludge dewatering |
|
Living sludge dewatering |
||||||||
|
121054 |
0.9 |
1.05 |
120 |
42 |
8000 |
1650 |
340 |
Iron and steel industry sludge dewatering |
|
22903 |
0.5 |
0.9 |
220 |
50-55 |
9000- |
1200 |
200 |
Living sludge dewatering |
|
10000 |
||||||||
|
20703 |
0.5 |
0.7 |
200 |
70 |
10000 |
1000 |
185 |
Living sludge dewatering |
|
Chemical sludge dewatering |
||||||||
|
24504 |
0.5 |
0.5 |
240 |
130-140 |
8500- |
1180 |
220 |
Paper dry network |
|
10000 |
Paper sludge dewatering |
|||||||
|
08903 |
0.9 |
0.9 |
78 |
50 |
8500 |
1430 |
210 |
Industrial sludge dewatering |
|
16704 |
0.7 |
0.7 |
160 |
90 |
12000 |
1350 |
265 |
Building materials industries |
|
WNW26908 |
0.5 |
0.9 |
26.4 |
69-75 |
5000- |
1364 |
240 |
Viscosity of the larger |
|
5500 |
Sludge |
|||||||
|
CXW12 Mesh |
0.75 |
0.8 |
47 |
48 |
|
650 |
94 |
Paper pulp washing |
Advantages:
· Unique structure with high drainage speed.
· Excellent water and air permeability yet not allowing the sludge.
· Superb resistance to acid, alkali and chemical solvents.
· Good temperature resistance up to 180°C.
· Easy to peel off filtered cake after filtration.
· Dramatically corrosion resistance for a longer service life.
Applications:
· Sludge filtering.
· Pulp squeezing in paper mills.
· Fruit juice squeezing.
· Waste water treatments.
· Paper and tissue plants.
· Coal separating plants, etc.

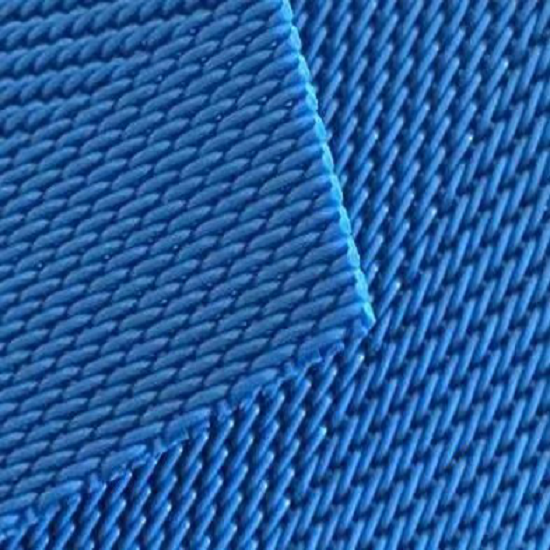

Our range of polyester sludge dewatering belts are available in various woven patterns, such as three-shed stain
woven,four-shed level woven, four-shed stain woven as shown in the following pictures.
